High Power 13W3 Female Solder Type 40A Connector

Brand Name : DZ

Model Number : Type 40A Connector

Place of Origin : CHINA

MOQ : 100 Pieces

Price : 100 - 999 Pieces = $2.40, 1000 - 4999 Pieces = $2.30, 5000 - 9999 Pieces = $2.20, ≥ 10000 Pieces = $2.10

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Piece/Pieces per Week Type 40A Connector

Delivery Time : 7 Days

Packaging Details : Export Standard Seaworthy Or Airworthy Packing Or As Customer's Required

Type : VGA

Application : Machine

Gender : Female

Pins : 13P

Product name : D-SUB High Power Connector

Material : Brass

Connector type : Vertical

Contact material : Copper Gold Plated

Insulation resistance : 100M Ohms Min./500 VDC

Temperature Range : -55C~+85C

Usage : Electric Appliance

Contacts : 13Pin

Package : Double Blister

Contact Now

High Power 13W3 Female Solder Type 40A Connector

# Type 40A Connector Properties

1.MATERIAL:
1-1.OUTSIDE SHELL: SPCC & BRASS
1-2.HOUSING:PBT
1-3.TEMINARL: COPPER ALLOY
2.PLATING SPECIFICATION
2-1.TERMINAL: GOLD PLATED.
2-2.SHELL: NICKEL PLATED.
3.MECHANICAL PERFORMANCE
3-1.INSERTION FORCE: 5N~20N.
3-2.WITHDRAWAL FORCE: INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.
3-3.DURABILITY: 10000 CYCLES.
4.ELECTRICAL PERFORMANCE
4-1.CURRENT RATING: 10A 20A 30A 40A.
4-2.LLCR: CONTACT: 40mΩ MAX(INITIAL).
4-3.INSULATION RESISTANCE:UNMATED: 100MΩ MIN.
4-4.DIELECTRIC WITHSTAND VOLTAGE: 100V/AC.
5.OPERATING TEMPERATURE RANGE: -55°C~85°C.
6.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.

High Power 13W3 Female Solder Type 40A Connector

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.

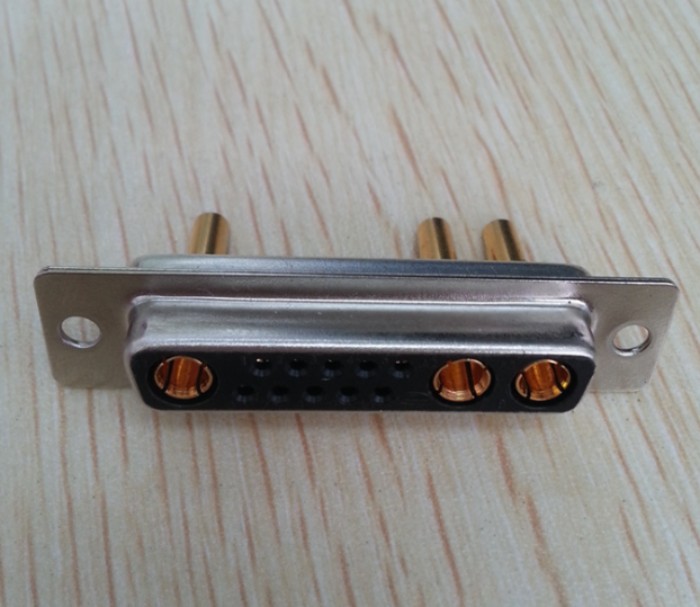

High Power 13W3 Female Solder Type 40A Connector Images
