2.54mm Pitch Ejector Header With Lock SMT Type Connector

Brand Name : DZ

Model Number : DZ189-ZF009

Place of Origin : CHINA

MOQ : 100 Pieces

Price : 100 - 999 Pieces = $0.12, 1000 - 4999 Pieces = $0.11, 5000 - 9999 Pieces = $0.10, ≥ 10000 Pieces = $0.09

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Piece/Pieces per Week Lock SMT Type Connector

Delivery Time : 7 Days

Packaging Details : Export Standard Seaworthy Or Airworthy Packing Or As Customer's Required

Type : Pin Header Connector

Packaging : Tape & Reel (TR)

Description : 2.54mm Pin Header Connector

Gender : Male

Pins : 24P

Color : Black

Current Rating : 3 AMP

Contacts Material : Phosphor Brozen

Plating : Goldplated

Package : Plastic Reel

Temperature Range : -25~+80

Lead time : 3-5days

Supplier Type : Original manufacturer

Pin or Socket : Pin

Application : PCB

Material : LCP

Specifications : SMT Pin Header Connector

Pitch : 2.54mm

Number of Rows : 2Rows

Mounting Type : SMT

Contact Now

2.54mm Pitch Ejector Header With Lock SMT Type Connector

# Lock SMT Type Connector Properties

1.5mm Pitch Single Row Pin Header 180 Degree Dip Connector
1.MATERIAL:
Plastic Material:	LCP
Contact Material:	Phosphor Bronze
Fixed Material	Brass
2.MECHANICAL PERFORMANCE
INSERTION FORCE	5N~20N
WITHDRAWAL FORCE	INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N
DURABILITY	10000 CYCLES
3.ELECTRICAL PERFORMANCE
CURRENT RATING	3A
CONTACT Resistance	40mΩ MAX(INITIAL)
Withstand Voltage	AC 500V
INSULATION RESISTANCE:UNMATED	100MΩ MIN

2.54mm Pitch Ejector Header With Lock SMT Type Connector

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.

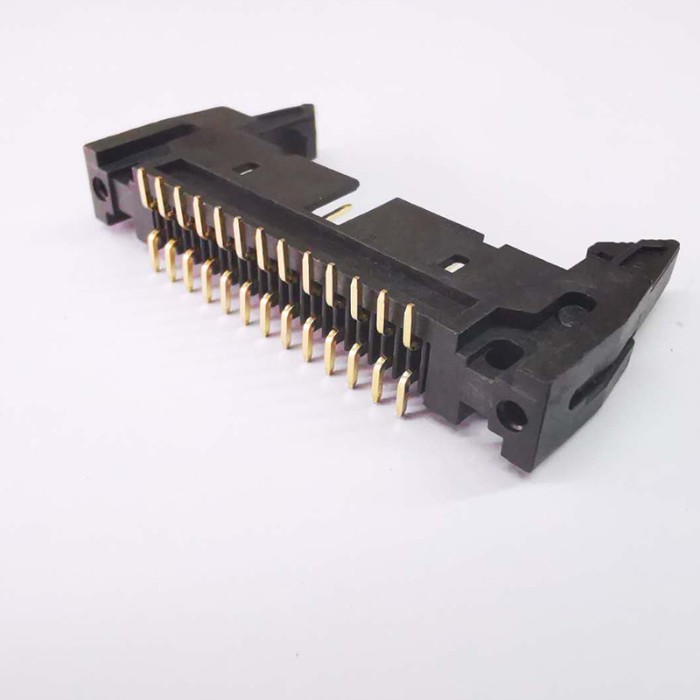

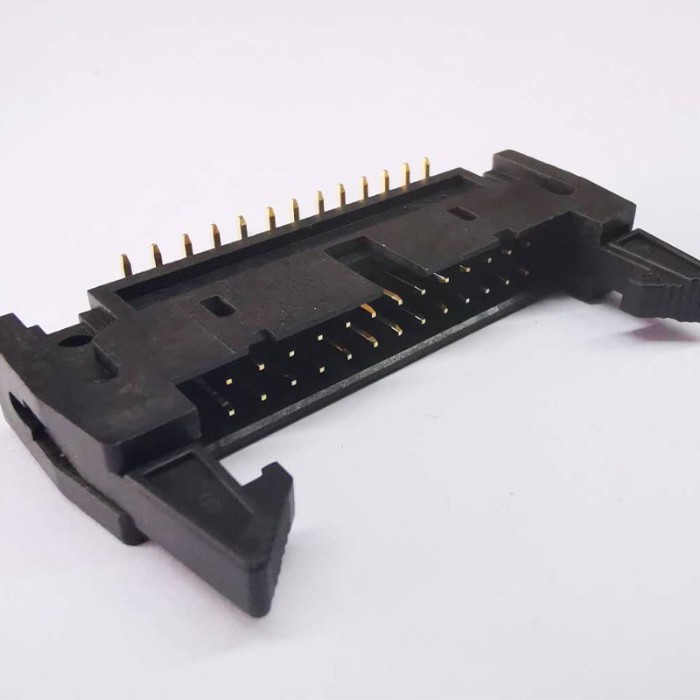

2.54mm Pitch Ejector Header With Lock SMT Type Connector Images
