2.0MM Pitch 2 X 9P Box Header Straight DIP Waterproof Electrical Connector

Product Categories
DZ Iron Steel Group
Contact Now

2.0MM Pitch 2 X 9P Box Header Straight DIP Waterproof Electrical Connector

Brand Name : DZ

Model Number : Female Vertical DIP

Certification : ISO9001 | CE | ROHS | REACH | MSDS | SGS

Place of Origin : CHINA

MOQ : 100 Pieces

Price : 100 - 999 Pieces = $0.12, 1000 - 4999 Pieces = $0.11, 5000 - 9999 Pieces = $0.10, ≥ 10000 Pieces = $0.09

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Piece/Pieces per Week Female Vertical DIP

Delivery Time : 7 Days

Packaging Details : Export Standard Seaworthy Or Airworthy Packing Or As Customer's Required

Shell Material : PBT

Type : Pin Header Connector

Packaging : Tape & Reel (TR)

Description : 2.54mm Pin Header Connector

Number of Positions : 2

Pins : 18P

Color : Black

Specifications : Right angle DIP Connector

Pitch : 2.00mm

Current Rating : 3 AMP

Contacts Material : Phosphor Brozen

Plating : Goldplated

Package : Plastic Reel

Board Thickness : 1.6MM

Temperature Range : -25~+80

Lead time : 3-5days

Supplier Type : Original manufacturer

Pin or Socket : Pin

Impedance : 50Ohm

Application : PCB

Number of Rows : 2Rows

Mounting Type : SMT

Connector Usage : PCB Board

Number of Columns : 12

Voltage - Rated : 5V

Number of Positions/Bay/Row : 2

Contact Now

2.0MM Pitch 2 X 9P Box Header Straight DIP

# Female Vertical DIP Properties

2.0MM Pitch 2 X 9P Box Header Straight DI

1.MATERIAL:

Plastic Material:

LCP

Contact Material:

Phosphor Brozen

Contact Plating:

Gold Plating

2.MECHANICAL PERFORMANCE



INSERTION FORCE

5N~20N

WITHDRAWAL FORCE

INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N

DURABILITY

10000 CYCLES

3.ELECTRICAL PERFORMANCE

CURRENT RATING

3 A

CONTACT Resistance

40mΩ MAX(INITIAL)

Withstand Voltage

AC 500V

INSULATION RESISTANCE:UNMATED

100MΩ MIN

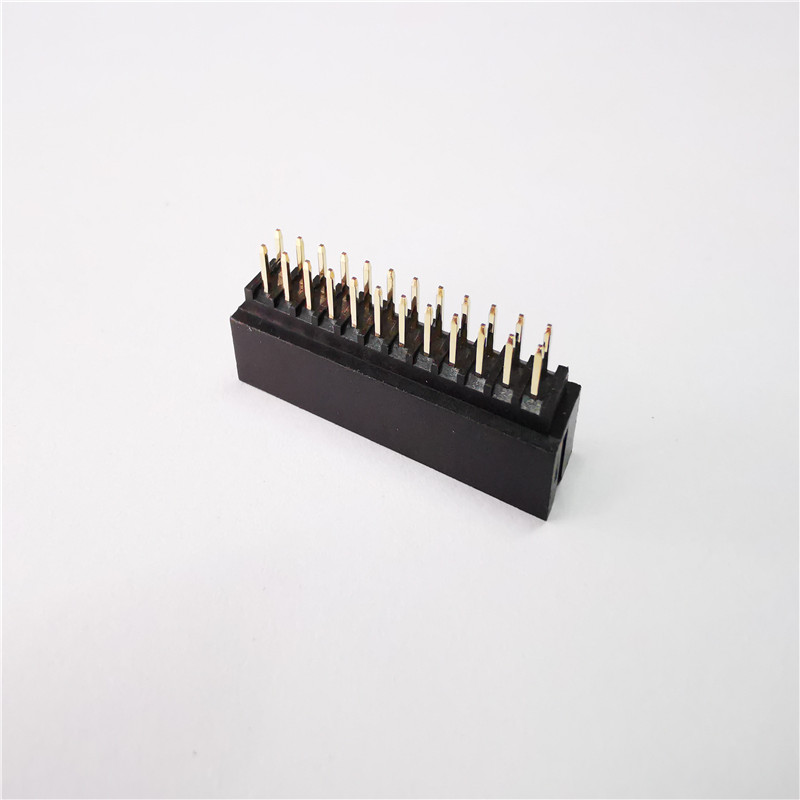

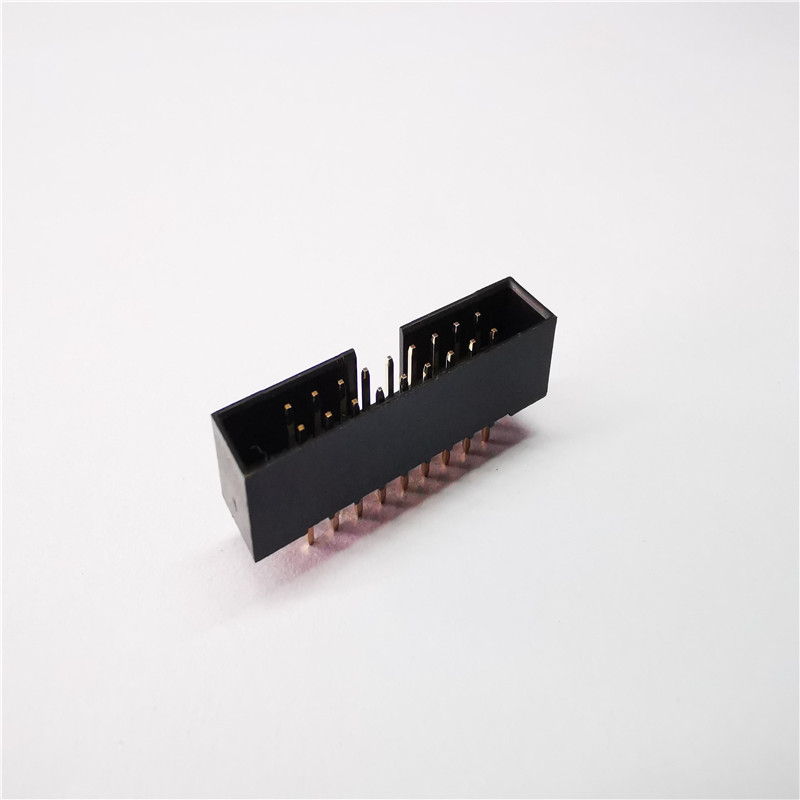

2.0MM Pitch 2 X 9P Box Header Straight DIP Waterproof Electrical Connector2.0MM Pitch 2 X 9P Box Header Straight DIP Waterproof Electrical Connector

2.0MM Pitch 2 X 9P Box Header Straight DIP Waterproof Electrical Connector

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.
